GE04T12型電腦高速絲襪機
寧波慈星股份有限公司

　　“慈星”牌GE04T12型電腦高速絲襪機是繼GE04P12型電腦高速絲襪機之后開發的一款具有四路編織功能的增強型單針筒提花絲襪機，其特點是結構更簡單、市場適應性更強。采用獨立抽風機或中央抽風系統進行織物牽拉，配備抗扭裝置，針筒轉動用伺服電機直接驅動以減少傳動鏈及傳動誤差。
　　由步進馬達控制生克眉毛以及控制針筒升降，可產生不同疏密、同步加壓潤滑油用以潤滑織針、生克和選針片，電腦控制襪子的制作全過程、款式和品質。該機可使用合成纖維、人造纖維以及裸氨綸和包覆紗等原料生產絲襪產品，主要生產短襪、長統襪、連褲襪等襪子類型。
　　“CIXING” brand GE04T12 type high speed hosiery machine (silk stocking) is a intensified computerized 4-feed woven single cylinder pattern silk stockings machine developed after type GE04P12, which is characterized by a much simple structure and more stronger market popularity . It adopts an independent exhaust fan or central exhaust system fabric stretch and torsion device. The needle cylinder rotation servo motor is directly driven to reduce transmission chain and errors.
The ne

edle cylinder lifting and sinkers controlled by the stepper motor can have a different density to put pressure on lubricant for the lubrication of needles, sinker and selection pieces. The whole production, style and quality of silk stocking are controlled by computer. This machine can use synthetic fibers, artificial fibers and bare spandex and wrap yarn to produce stocking products, including socks, long stockings and pantistockings.

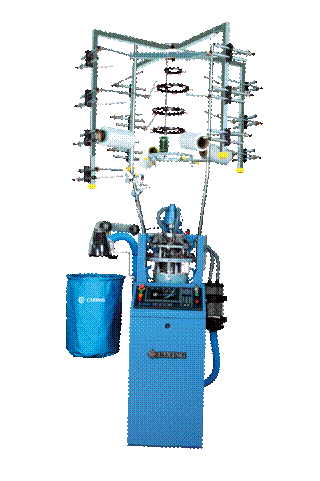

如圖：

技術參數PARAMETER
　　筒徑：4”??? Diameter of spinning can: 4”
　　機號：32???? Knitting gauge: 32G
　　針數：400針? Needle number:400 needles
　　編織系統：4路 Knitting system: 4 feeds
　　額定功率：2.3KW? Rated power: 2.3KW
　　額定電壓：380V? Rated voltage: 3 phase 380V
　　額定電流：8.5A ?Rated current: 8.5A
　　花型輸入方式：USB接口 Pattern input mode: USB interface
　　選針器：每

路一個16段電子選針器，可實現四路選針。
　　Actuator: Each feed with a 16-sections actuator for 4-feed needle selection.
　　最高轉速：800RPM? Maximum speed； 800RPM
　　密度調節：分為針筒、密度三角、生克三角三個部分，對織物進行密度調節。
　　Stitch density control: The stitch density is divided into needle cylinder, quality cam and sinker cam for the adjustment of fabric stitch density.
　　織機功能：不同選擇的浮線橡膠或所有織針成全編織狀態。可編織平紋，網眼，提花等組織。
　　Knitting machine function: May select different float rubber or knitted by all needles, which can knit the plain, mesh and jacquard patterns.

展臺照片：
