一、機器用途：

本機兼具B702A型搖絞機的優點,采用雙電機傳動,斷紗能自停,是較理想的紗線成絞設備。

二、主要技術參數：

1、形式：雙面上喂入框式

2、錠數：雙面48錠 60錠 70錠 80錠

3、紗框周長調節范圍：

1300mm-1650mm

1600mm-2100mm  2400mm-3200mm

4、導紗桿每行程距離：  1、60mm-80mm、2、60mm-140mm、3、60mm-200mm

5、外形尺寸：5410×1910×1760mm(長×寬×高)

6、電機功率：0.75KW

7、重量：1800公斤

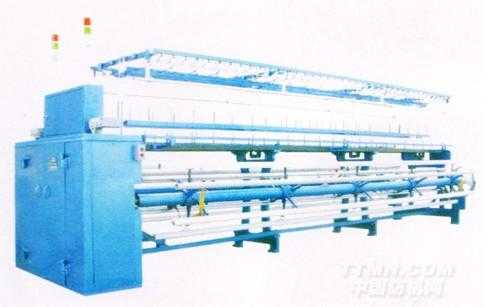

1. Use of the Machine:

The machine both have advanfages of B702A,It uses two generators,and it can stop when yarn is cut, It is an idea machine for yarn to be rocked.

2. Main Technical Parameters:

1) Type:two-sides top-feed low-frame type

2) Number of spindles: two-sides 48 60 70 80

3) Ryce(Swift) circumference adjustment range:1300mm~1650mm 、1600mm~2100mm 、2400mm~3200mm

4) Distance of each travel of the lever jack:

1.60mm~80mm

2.60mm~140mm

3.60mm~200mm

5) Overall dimensions:5250(length)*1910(width)*1760(height)mm

6) Moter capacity: 0.75KW

7)Weight: 1800kg
